Sommer twist 350 rapido set – 2-leaf swing gate operator, 27 mm/s, 3 m leaf width, DTA-1 control, SOMloq2

The Sommer twist 350 rapido set is the optimal solution for double-leaf gates with a leaf width of up to 3 m and a weight of 300 kg . The high sliding speed of 27 mm/s ensures fast opening and closing. Thanks to the SOMloq2 radio system and soft-running mechanism, the set offers maximum security and convenience.

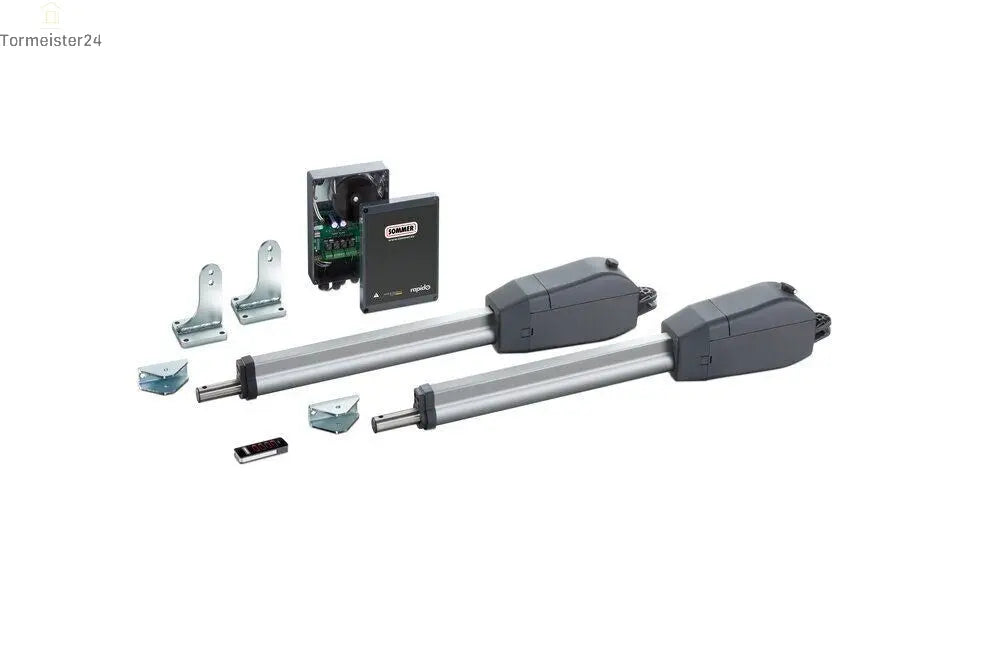

📦 Scope of delivery:

• 2x twist 350 rapido swing gate drive
• DTA-1 control unit in a housing (IP65, 250×175×75 mm)
• SOMup4 radio receiver (868.95 MHz, 40 memory locations)
• Pearl Vibe handheld transmitter with vibration feedback
• Mounting material & fittings

⚙️ Technical highlights:

• Thrust speed: 27 mm/s
• Max. leaf width: 3 m | Gate weight: 300 kg
• Tensile and compressive force: 2,000 N | Protection class: IP44
• Opening angle: up to 130°
• Voltage: 220–240 V | Power consumption: 2.9 W (standby)

🛡️ Safety & Comfort:

• Self-locking drive & emergency release in case of power failure
• Dynamic Power System (DPS) with electronic obstacle detection
• Pedestrian door function & automatic closing
• Integrated soft-running ramps for power optimization

📶 SOMloq2 radio system:

• 128-bit AES encryption & rolling code
• Autorepeat & hop function for maximum range
• Backwards compatible with Somloq Rollingcode

🔧 Assembly & Application:

• Universal DIN left & right
• Cable outlet at the top – optimal mounting height
• Mixed operation with twist 200 E/EL & twist XL possible*

*Only compatible with conversion kit "twist XS".

🛒 Order now at Tormeister24!

The perfect solution for safe, convenient gate opening – buy the twist 350 rapido set for double-leaf swing gates online now!

twist 350 rapido Set – 2-leaf swing gate operator with 27 mm/s for gates up to 3 m leaf width

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
