Sommer swing gate operator twist 350 rapido - up to 3 m gate leaf & radio control

The Sommer twist 350 rapido is the powerful swing gate operator for courtyard gates with a leaf width of up to 3 m and a weight of 300 kg. With a stroke speed of 27 mm/s, it opens and closes your gates approximately 30% faster than the standard version – ideal for private and commercial driveways.

📦 Scope of delivery:

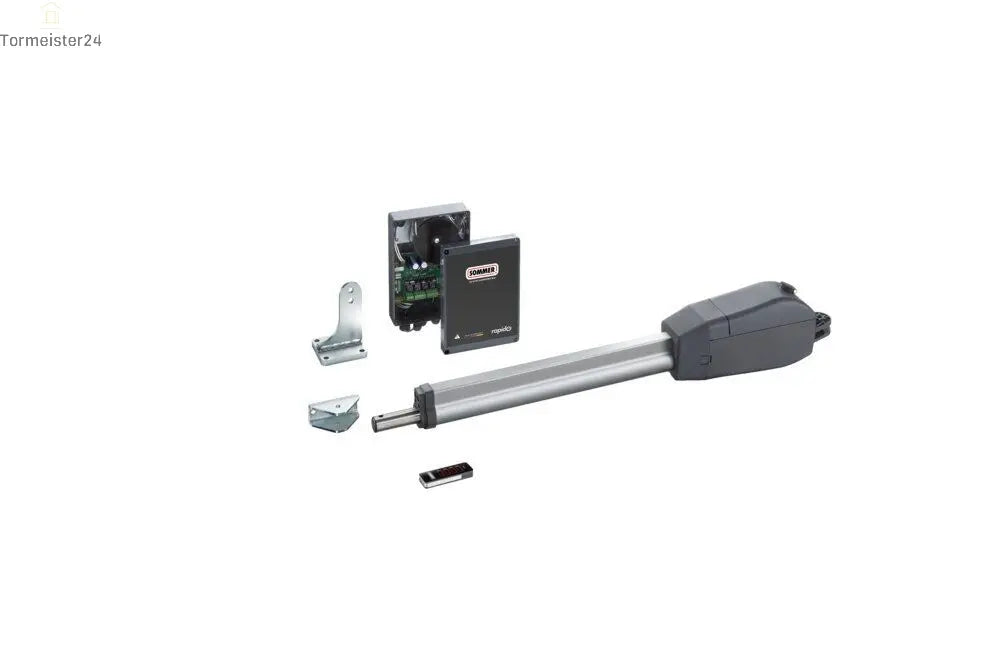

• 1x swing gate operator twist 350 rapido (for DIN left & right)
• Post & gate leaf fittings
• DTA-1 controller in IP65 housing (250×175×75 mm)
• Radio receiver SOMup4 (868.95 MHz, 40 memory locations)
• 4-command handheld transmitter Pearl Vibe with vibration feedback
• Slot for memory expansion Memo (up to 450 radio commands)

⚙️ Technical highlights:

• Max. gate leaf width: 3 m
• Max. gate weight: 300 kg
• Thrust speed: 27 mm/s
• Max. tensile and compressive force: 2,000 N
• Protection class: IP44 | Duty cycle: ED 15% S3
• Temperature range: –25 °C to +65 °C

🔒 Safety features & comfort:

• Patented braking system against mechanical overload
• Self-locking prevents unauthorized opening
• Electronically controlled force measurement (DPS) detects obstacles
• Pedestrian door function for one wing (e.g. bicycle access)
• Automatic closing after light barrier triggering
• Mechanical emergency release in case of power failure

📶 SOMloq2 radio technology:

• 128-bit AES encryption for maximum security
• Auto-repeat function for convenient opening when approaching
• Hop function to increase range
• Backwards compatible with Somloq rolling code

💡 Well-thought-out design & expandability:

• Side cable outlet protects against floor damage
• Mounting on the stable gate lower beam for optimal power transmission
• Can be combined in mixed operation with twist 200 E/EL & twist XL (with twist XS conversion kit)

🛒 Order now at Tormeister24!

Maximum speed, maximum safety and convenient control – with the twist 350 rapido swing gate operator you are opting for the latest technology and long-lasting quality.

Swing gate operator twist 350 rapido – fast, safe & powerful

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
