Swing gate operator Sommer twist M Set 1-leaf – up to 2.5 m gate leaf width

The Sommer twist M swing gate operator set is perfect for single-leaf swing gates weighing up to 300 kg and with a maximum gradient of 10% . Thanks to radio control via SOMloq2 and the compact DST-A 24 control unit, the system is particularly convenient and secure.

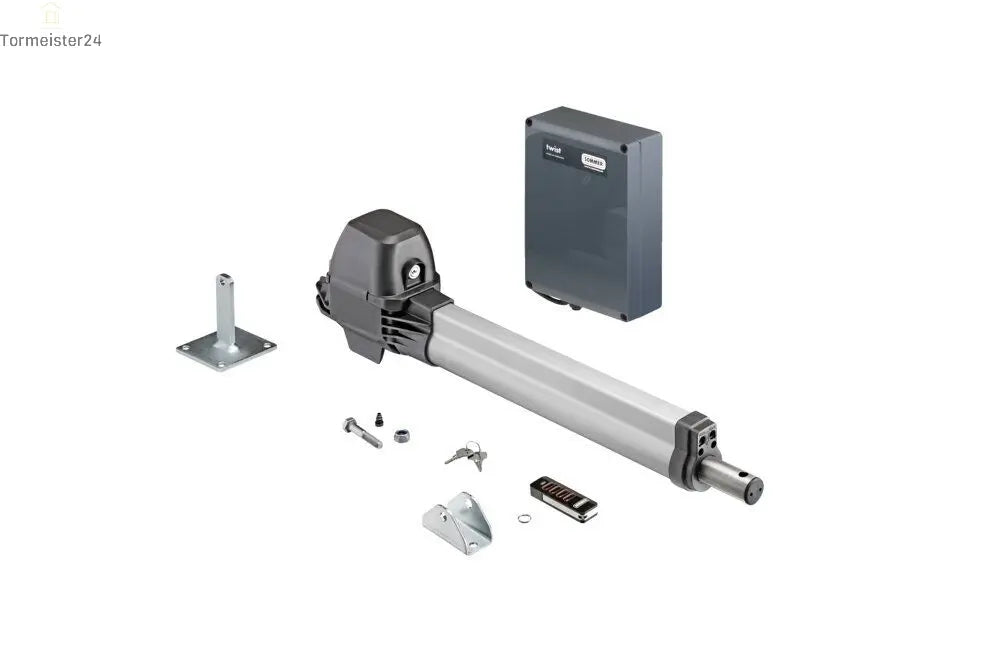

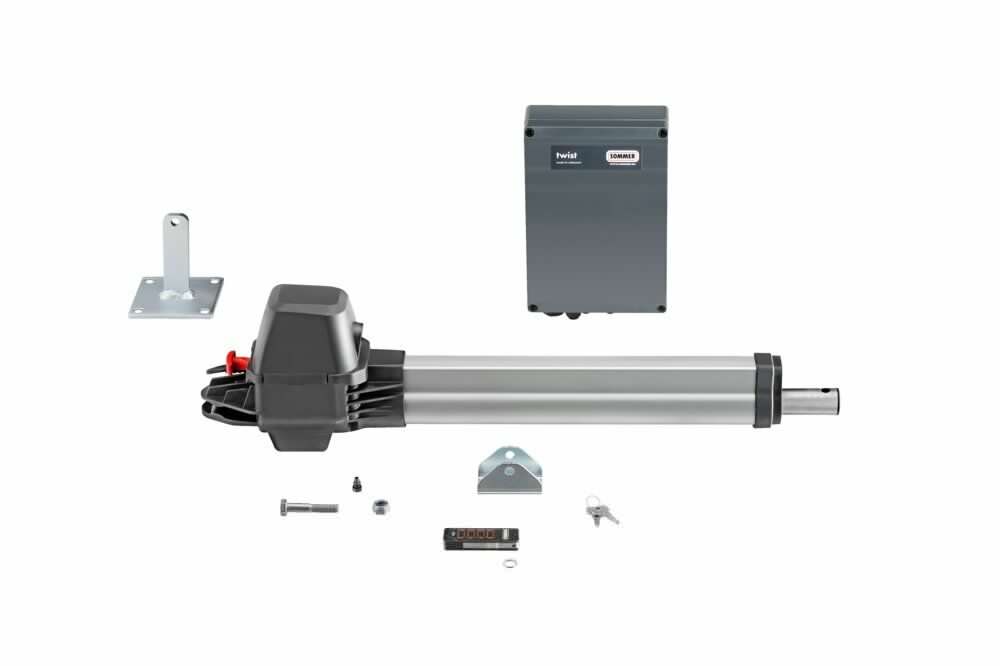

📦 Scope of delivery:

• 1 swing gate operator twist M (DIN left/right insertable)
• DST-A 24 control unit in IP65 housing (250×175×75 mm)
• Radio receiver SOMup4 S2 (868.95 MHz, 40 memory locations)
• 4-command handheld transmitter Pearl Vibe (#4019V000) with vibration feedback
• Slot for memo module (up to 450 radio commands)
• Post and sash fittings, mounting material

⚙️ Technical highlights:

• Nominal tensile strength: 660 N
• Max. tensile and compressive force: 2,000 N
• Max. gate weight: 300 kg
• Max. opening angle: 120 °
• Gate gradient: up to 10%
• Temperature range: –25 °C to +65 °C
• Duty cycle: 15% (S3)

🔌 Electrical data:

• Operating voltage: 220–240 V, 50–60 Hz
• Standby consumption: 2.90 W
• Rated current consumption: 1.0 A
• Protection class: I | Protection type: IP44

📡 Radio control SOMloq2:

• Frequency: 868.950 MHz
• Memory locations: 40 (expandable to 450 with Memo)
• Transmitter management: via SOMlink S2
• Feedback: by vibration on the handheld transmitter

📱 Comfort & Safety:

• Radio control with encrypted 128-bit AES protocol
• Compatible with other SOMMER radio components
• No complex cabling required

Order the twist M single-leaf swing gate operator with modern radio technology and high performance online now – ideal for private and commercial driveways!

Swing gate operator twist M Set 1-leaf – 660 N, 300 kg, radio receiver SOMloq2

Downloads

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
