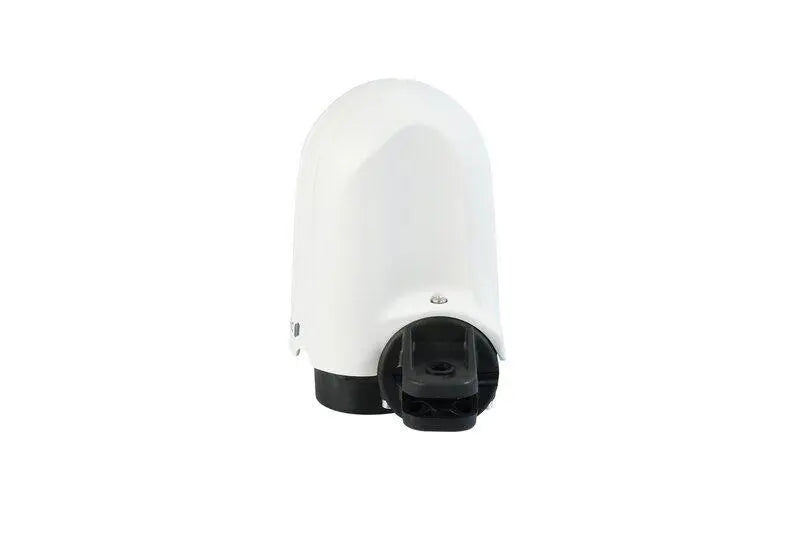

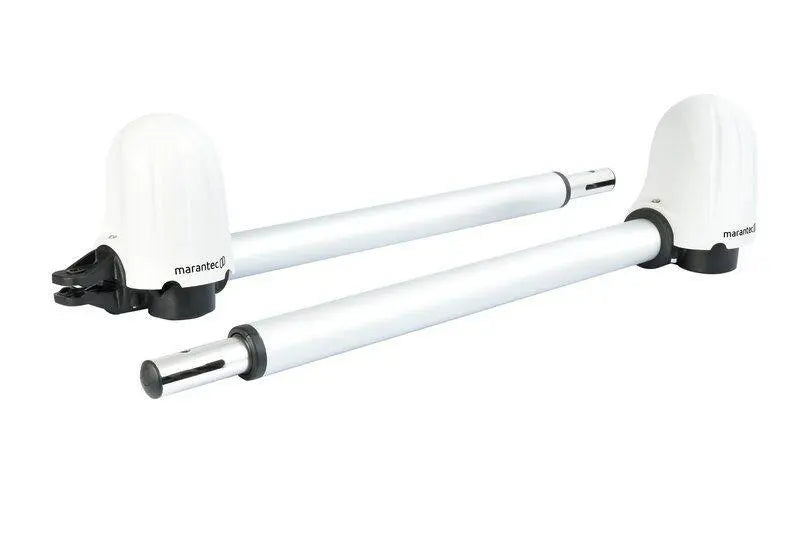

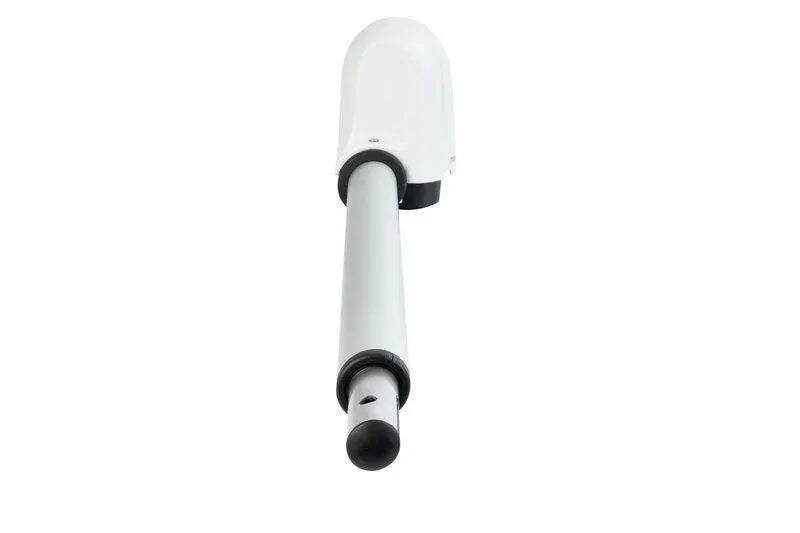

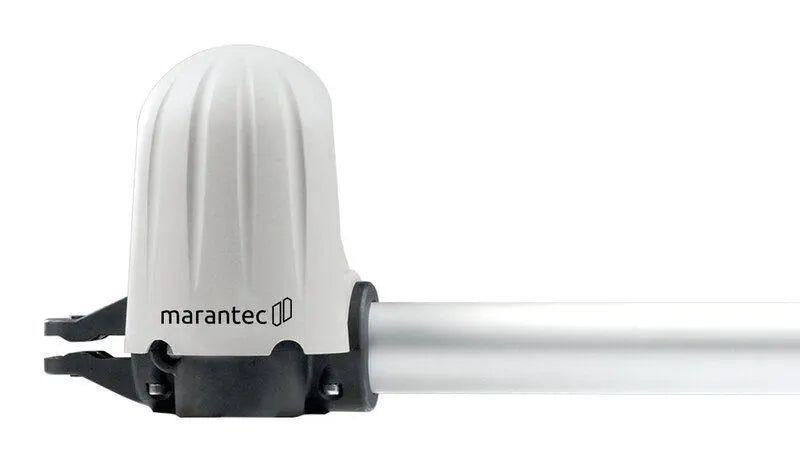

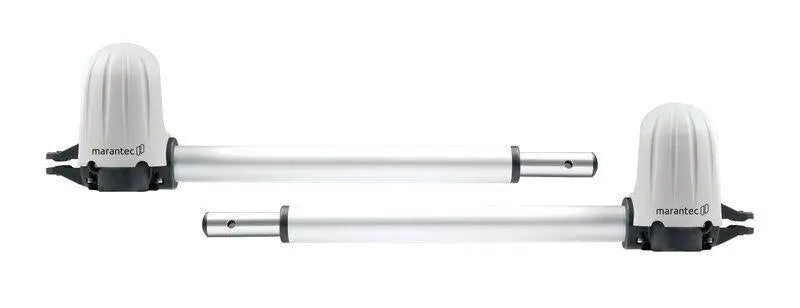

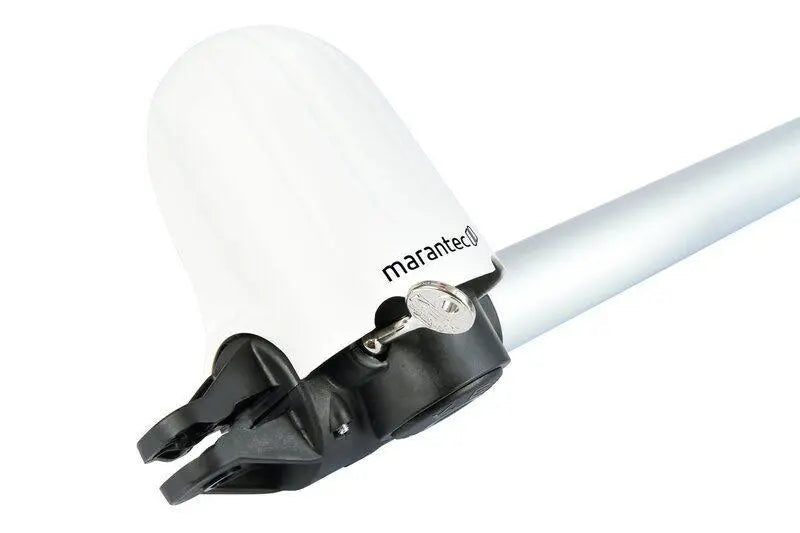

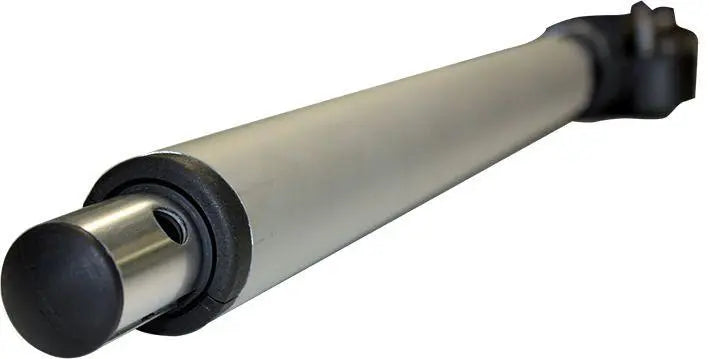

Marantec for swing gates up to 3.0 m Set of two drives without control
Marantec for swing gates up to 3.0 m Set of two drives without control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Scope of delivery:
- Left and right motor unit without cable (2x1.5 mm² required)
- gate and pillar angles
Drive – Features:
- Active closing edge protection required
- Mechanical end stop in end position OPEN and CLOSED required
- 2-wire technology for easy retrofitting

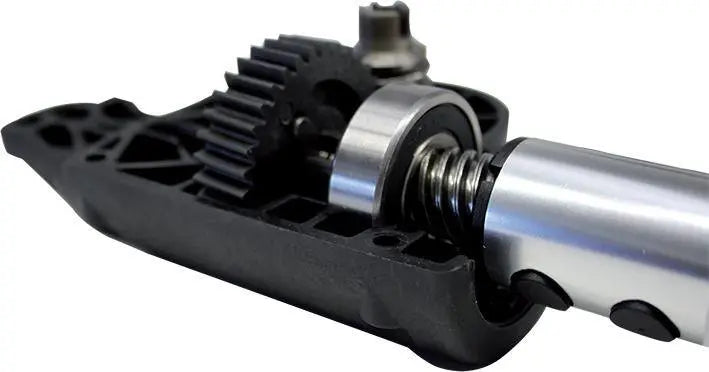

- Very quiet mechanism
- All mechanical parts protected against weather influences
- Stable and UV-resistant plastic housing
- Gate and pillar angles for easy motor installation
-
Product descriptive dataconnection type conventionalContinuous sound pressure level (max.) [dB(A)] 70Encoder Noprotection class IP44application areaWidth of gate leaf (max.) [m] 3Weight of gate leaf (max.) [kg] 400Height of gate leaf (max.) [m] 2Slope (max.) [%] 0Temperature (min./max.) [°C] -20/55performance dataRunning speed (max.) [cm/s] 2.5Opening angle (max.) [°] 128Tensile and compressive force (max.) [N] 1,400Engine power [kW] 0.09Electrical dataOperating voltage [V] 24 V-DCOperating voltage type direct currentMotor voltage [V] 24 V-DCRated current [A] 3.5dimensions and weightsWeight [kg] 3.2Travel (max.) [mm] 400Dimensions (WxHxD) [mm] 115x177x741Dimensions (WxHxDmin/Dmax) [mm] 115x177x741/1141
