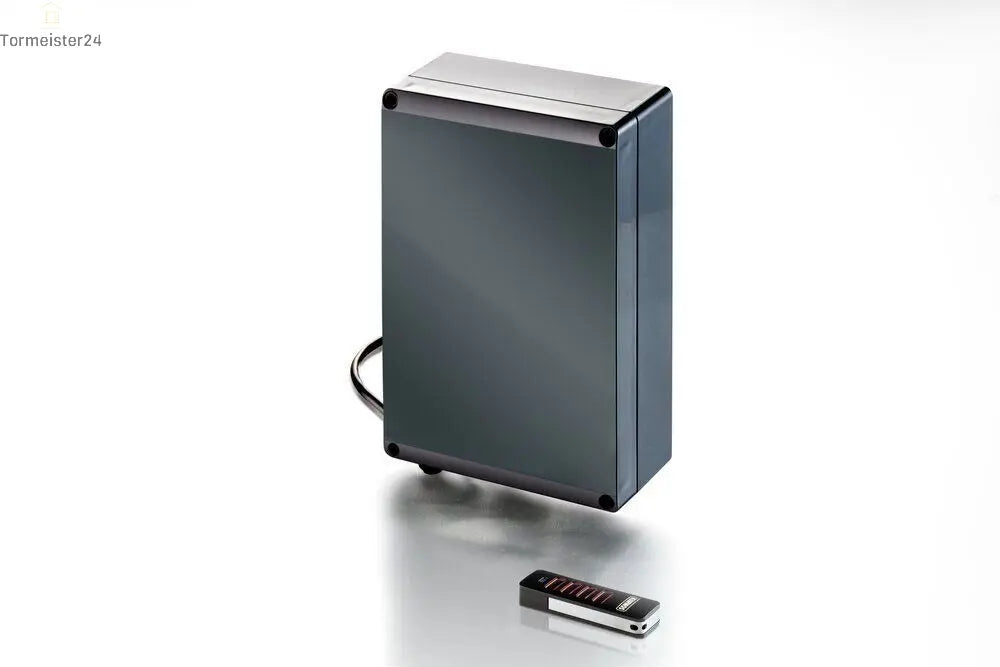

Control unit twist XL for SOMMER swing gate operators (twist 200 E/EL, 350, XL) – with radio receiver SOMup4 & hand transmitter

The Sommer twist XL control unit is the ideal solution for reliable and secure gate automation for the twist 200 E/EL , twist 350 , and twist XL swing gate operators. It impresses with its simple integration, modern radio technology, and maximum compatibility.

Technical equipment

• Voltage: DC 24 V (mains supply: 230 V)
• Housing: Protection class IP65, 250 × 175 × 75 mm
• Receiver: SOMup4 radio module (FM 868.95 MHz SOMloq2)
• Memory: 40 radio memory locations, expandable via Memo (up to 450 commands)
• Handheld transmitter: 4-command Pearl Vibe included

Advantages of the SOMloq2 system

• 128-bit AES encryption for maximum security
• Auto-repeat function for convenient opening while driving
• Hop function to increase range by signal forwarding
• Backward compatibility with Somloq rolling code

Easy operation & configuration

With the SOMlink service interface, you can conveniently manage all transmitters: teach them in, delete them, or retrieve diagnostic data. The control system is ideal for expanding existing systems or as a replacement during modernization.

Compatible drives

• SUMMER twist 200 E/EL
• SUMMER twist 350
• SUMMER twist XL

Benefit from smart technology, secure radio transmission and long-term reliability – with the twist XL control system from SOMMER .

Control unit twist XL for SOMMER swing gate operators

Assembly instructions Click here to go to the assembly instructions

Checklist for swing gate operators Click here to start the download
