Marantec set sectional doors up to 45 m², 400 V-AC motor, 120 Nm, 19 min-1, AWG, with load contactor control CS 320
Marantec set sectional doors up to 45 m², 400 V-AC motor, 120 Nm, 19 min-1, AWG, with load contactor control CS 320 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
STA 1-13-15 E-KE 400V/3 ~ AWG 25.4 IP54 – CS320 – 11.0m
Scope of delivery:

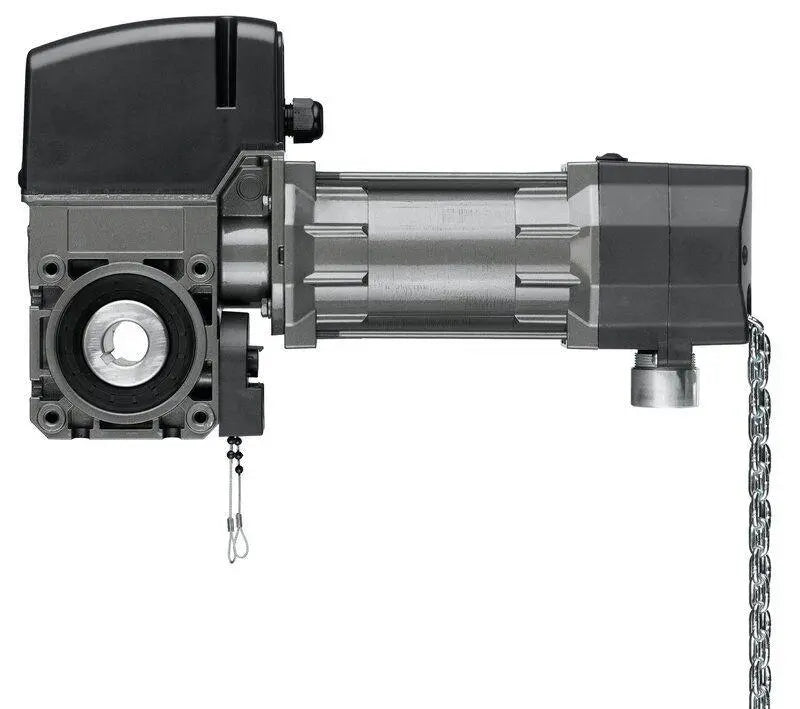

- Drive STA 1-13-15 E-KE 400 V/3~ AWG 25.4 mm with 1,000 mm reel chain

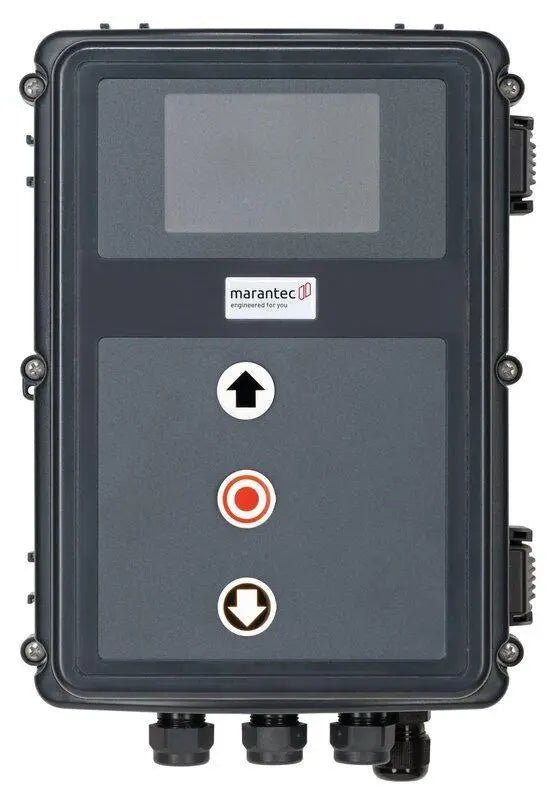

- Control CS 320 400 V/3~ in CS standard housing with 3-way button and LC display in the cover, connection cable with CEE plug 5-pin red

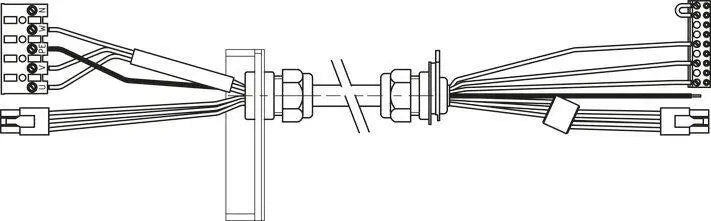

- Cable set with connection terminals and cable bushings in control and drive, 11,000 mm

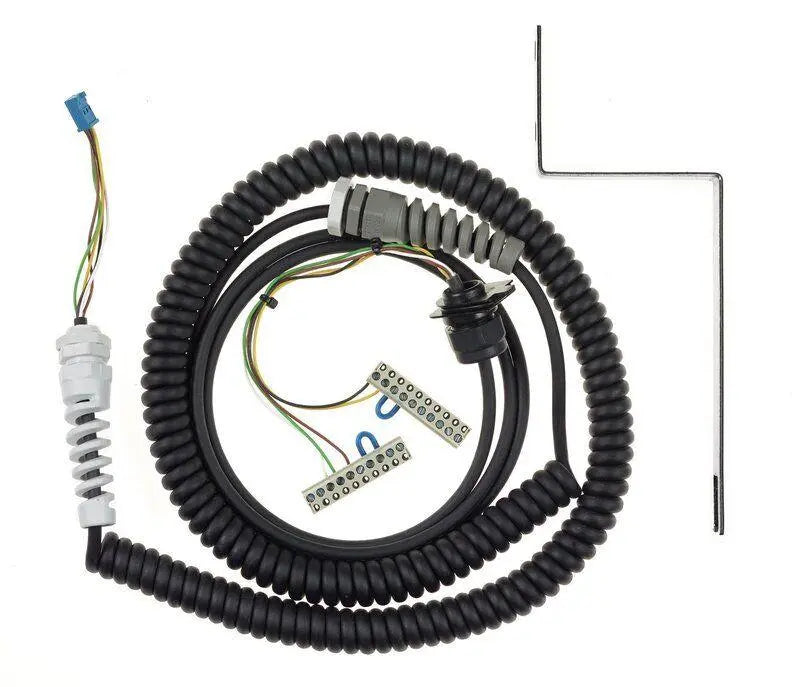

- Spiral cable 5x0.25 mm² with mounting bracket, cable glands, connection terminals for the control and plug for the door leaf connection box, 3,000 mm uncoiled/800-3,200 mm coil length
- Gate leaf connection box with circuit board, opening for spiral cable and 4 cable entries
- Additional door leaf connection box with circuit board and 4 cable entries
- Connection cable for connecting 2 door leaf connection boxes 10 m

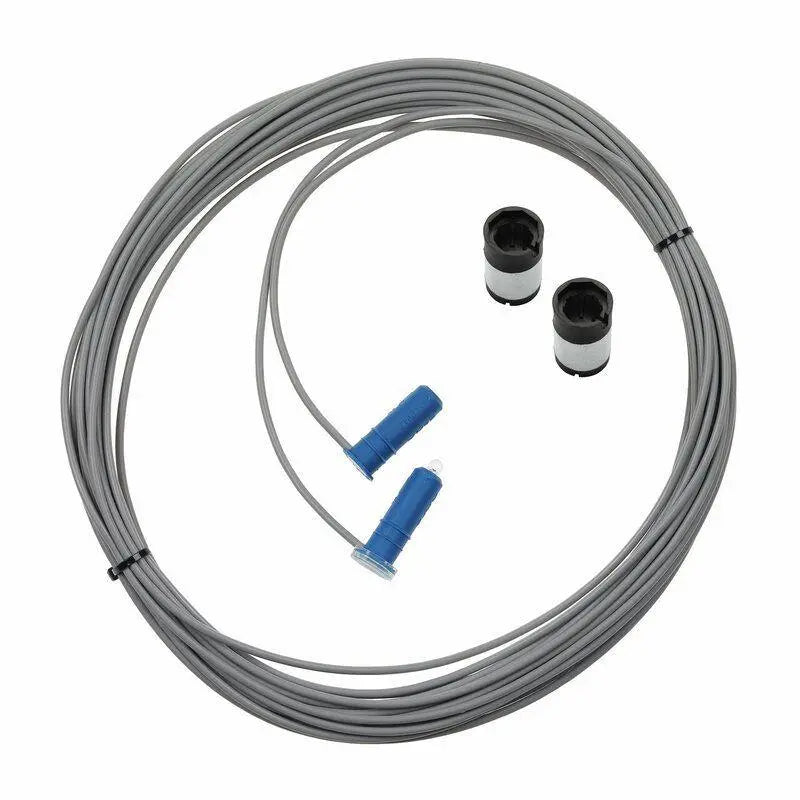

- F-light barrier transmitter 10,500 mm/receiver 1,000 mm with 2 F-spacer sleeves 11/22 mm
- 2 slack wire switches in the piston with 0.4 m cable, conventional, NC with positive opening and 8.2 kOhm resistance
- Pull rope, 6,000 mm with red and green rope bell
- Reel chain: 15,000 mm, with 2 chain locks

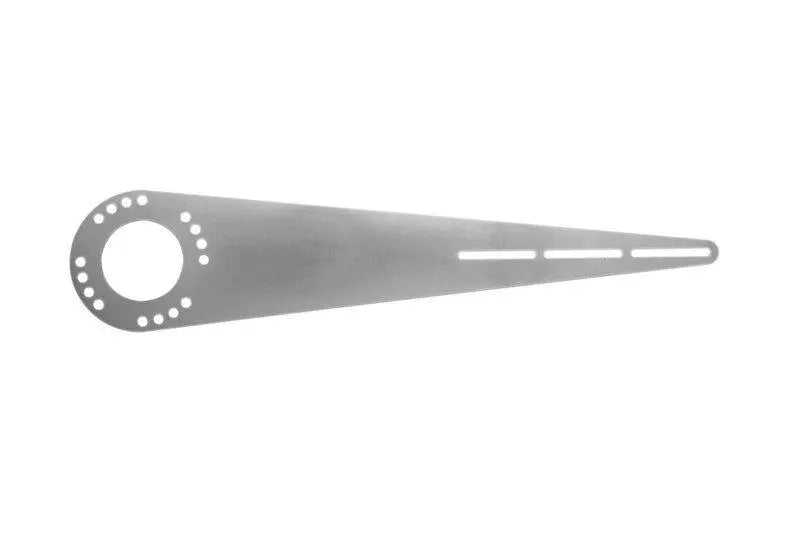

- torque support oval

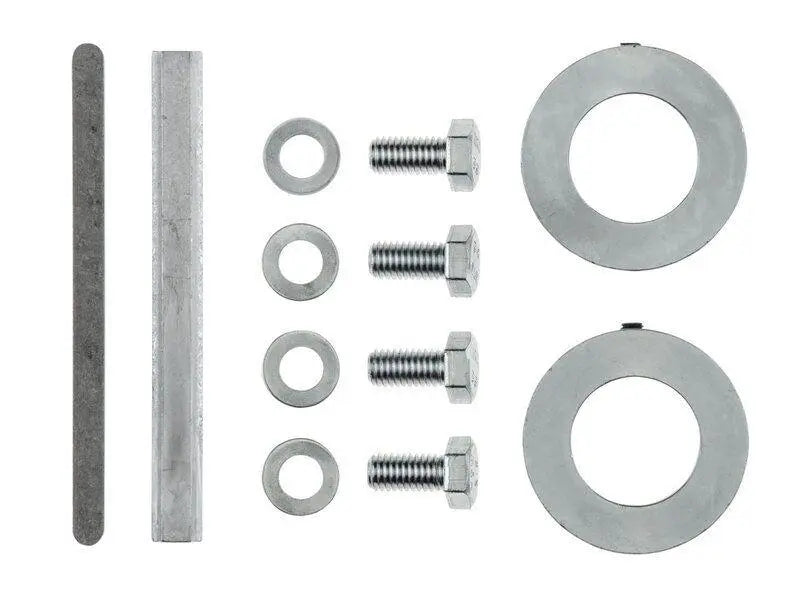

- Accessory bag with key for solid shaft (6.35x6.35x100 mm) and high key for hollow shaft 25.4/31.75 mm (6.35x8.6x98 mm)
Drive – Features:
- 2 versions available: STA external control, STAC integrated control
- Die-cast aluminum housing, rolled worm shaft and double worm shaft bearing
- Emergency operation via emergency hand crank (KU), emergency hand chain (KE), emergency release (E), emergency release with spring return (E-FR) or maintenance release with emergency hand chain (E-KE)
- maintenance release optional
- Easy conversion from crank to chain
- Hollow shaft 25.4 mm as standard, special hollow shaft on request
- Supply: 230/400 V/3~/50 Hz
- thermal protection in the motor winding
- For gate systems with above-average switching, a drive with an increased motor duty cycle (HD) should be selected.
- Pluggable connectors
- End position adjustment via electronic absolute encoder (AWG) or mechanical limit switches (MEC)
- Special designs such as additional voltages and frequencies, different output speeds, higher protection classes and hollow shaft diameters on request
- ATEX version available (see chapter "Drives for potentially explosive areas")
- For temperature ranges below -20 °C, suitable oil and electric heating are available on request
Control – Functions:
- 4 programmable relay outputs with 44 functions
- 2 programmable inputs with 27 functions
- Changing the direction of rotation via circuit board button/display
- Intermediate position programmable (only with AWG)
- Adjustable force limitation in OPEN direction (only with AWG)
- Rotation direction monitoring and detection (only with AWG)
- Integrated gate travel counter
- Programmable maintenance alarm (PIN code protected)
- Integrated error memory (reading of all error messages including frequency and cycle of the last occurrence) only with LCD monitor
Control – End position setting:
- Via mechanical limit switches (MEC) and/or via absolute encoders (AWG)
- Adjustment via circuit board button or plug-in LCD monitor
Control – Operation:
- PCB buttons and LEDs for status reporting (standard)
- Plug-in LC display with plain text display
- 3-button navigation/status and diagnostic messages
Control – structure and connection:
- Switchable transformer from 230 V/1~/3~ to 400 V/3~
- short-circuit-proof extra-low voltage
- Illuminated lid keyboard (night lighting)
- housing protection for printed circuit board
- Adjustable, pre-assembled wall brackets
- connection for elements of the safety circuit
- Connection for closing edge safety device (opto, 8.2 kOhm, pressure wave bar or leading light barrier) in CLOSE direction
- Connection for closing edge safety device (8.2 kOhm and opto) in OPEN direction
- Connection for 2 light barriers (2-wire, relay, NPN, PNP) with/without testing
- Connection for wicket door and slack rope switch PL c Cat. 2 (8.2 kOhm) with testing according to EN 12453:2017
- Connection for 2 light grid systems with/without testing
- connection for radar presence detector
- Interface for connecting a frequency converter
- interface for connecting expansion modules
- slots for radio module and weekly timer
- Slot for 2-channel radio transmission system for wireless signal transmission of closing edge system and/or safety circuit
- Control of the magnetic brake via relay output
- For drives with externally switched brakes, an additional brake monitoring module is installed (BWM1)
- Supply for external devices (24 V-DC/500 mA and 230 V-AC/1 A)
Control – Optional:
- LCD monitor with plain text display
- MS-Bus extension module oncoming traffic control
- MS-Bus extension module pull-in protection
- Integrated main switch
- Individual lidding films
- control in the steel cabinet
- A second CS 320 can be connected in DUO function via MS-BUS
-

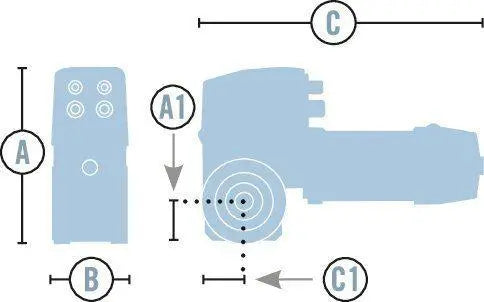

Product descriptive dataconnection type pluggablebrake control without brakeContinuous sound pressure level (max.) [dB(A)] 70end position system absolute encoderSafety gear integrated NoGearbox rolled worm shaft double bearing worm shaftEmergency operation maintenance release with emergency hand chain (E-KE)protection class IP54control type externalOverload protection thermal protection 140 °Cbrake type without brakeapplication areaGate area (max.) [m²] 45Temperature (min./max.) [°C] -20/60performance dataOutput torque [Nm] 130Output speed [1/min] 15Holding torque (min.) [Nm] 600Revolutions output (max.)** 20Cycles per hour (max.)* 20Engine power [kW] 0.55Electrical dataOperating voltage [V] 400 V/3~Operating voltage type three-phase currentNominal frequency [Hz] 50Control voltage [V] 24 V-DCRated current at 400 V/3~ [A] 1.80Rated current at 230 V/3~ [A] 3.10On-site fuse protection (mains operation 230 V/3~) [A] 16On-site fuse protection (mains operation 400 V/3~) [A] 16dimensions and weightsWeight [kg] 15Dimension A1 [mm] 55Dimension C1 [mm] 55Shaft mount [mm] 25.4Shaft mount (optional) [mm] 25 30 31.75 35 32 mm Hexagon (HEX)CS 320 2.2 kWProduct descriptive datahousing type CS-Standardprotection class IP65LCD display typeMain switch in the control cover without main switchPush button in the control cover electronic 3-way button CSEmergency stop in the control cover without emergency stopFunction switch in the control cover without function switchPower plug CEE plug 5-pin redapplication areaTemperature (min./max.) [°C] -10/45performance dataOperating mode (control) dead manElectrical dataOn-site fuse protection (mains operation 230 V /1~) [A] 10On-site supply 400 V/3~/50 HzLoad capacity Power (max.) [kW] 2.2Switching current (max.) [A] 8Control voltage [V] 24 V-DCdimensions and weightsDimensions (WxHxD) [mm] 215x275x190
