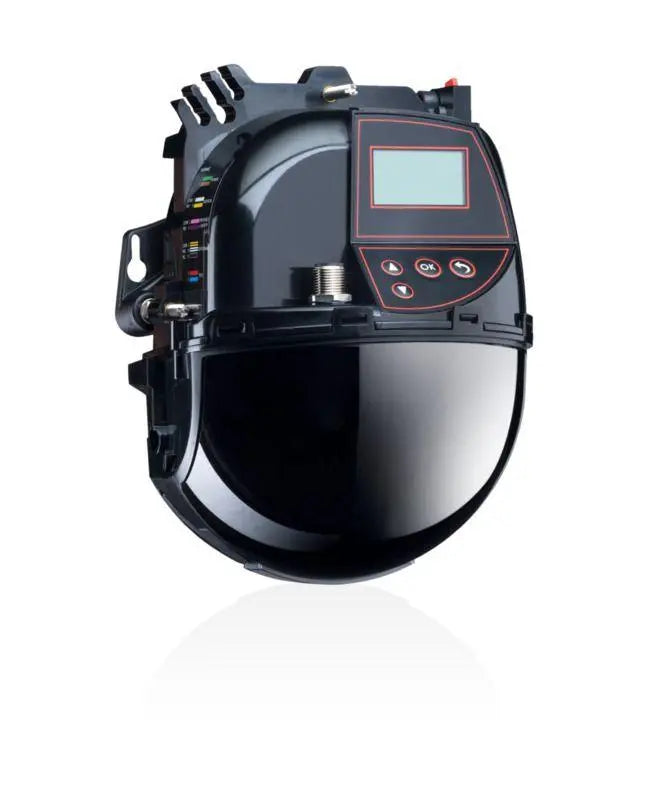

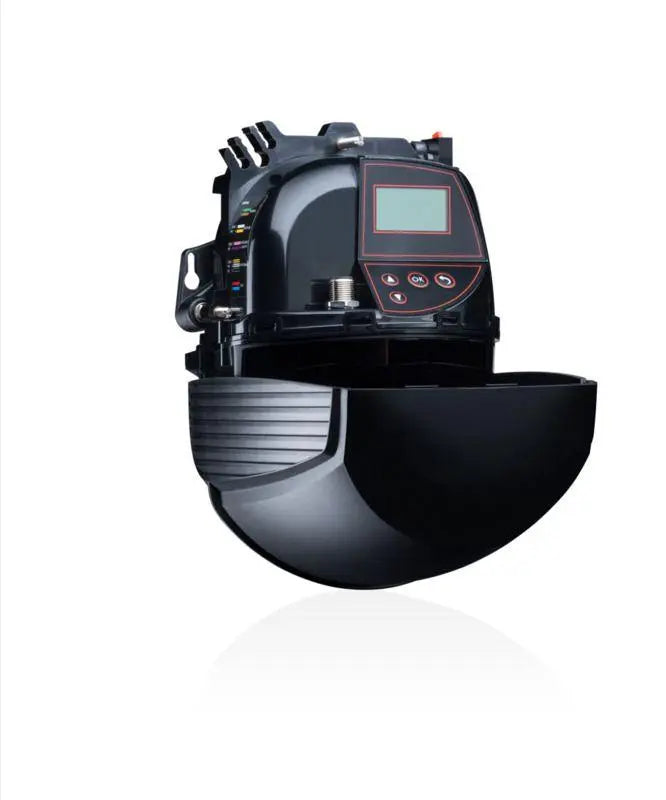

Laser motion detector and presence sensor, 2.0-10.0 m installation height, IP65, with 10 m cable For all Marantec controls and third-party products. An additional power supply unit for the voltage supply is required for many controls
Scope of delivery:
- motion and presence sensor
- connection cable, 10,000 mm
Features:

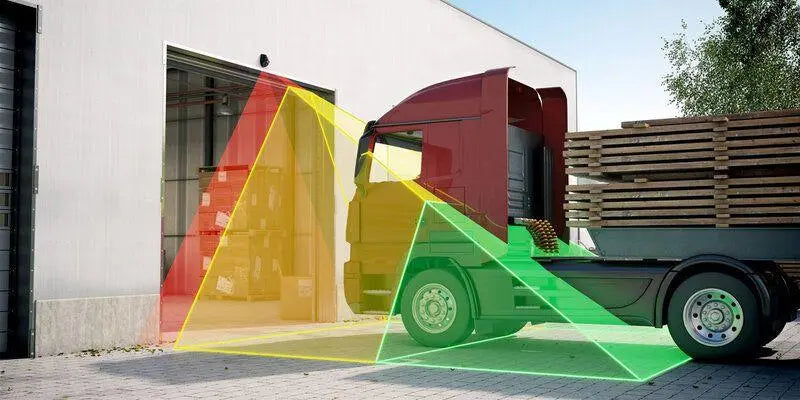

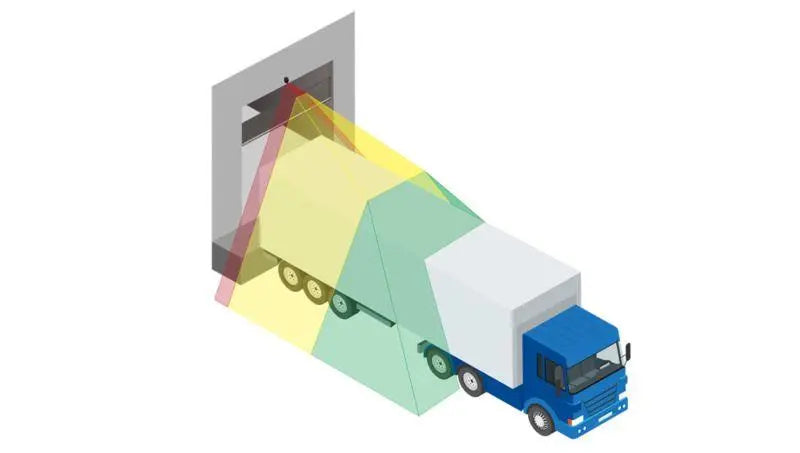

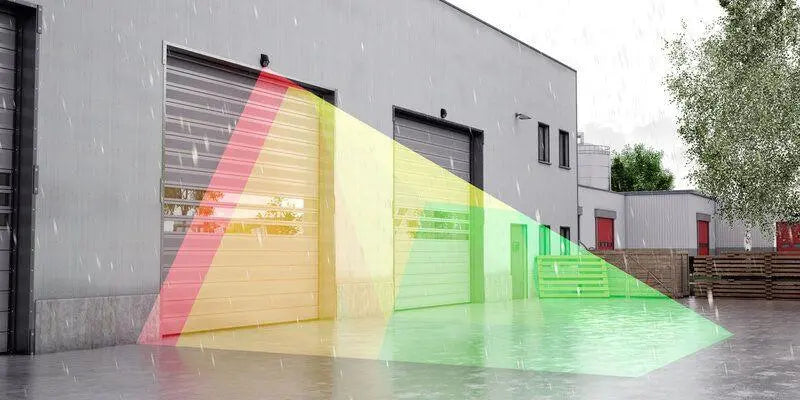

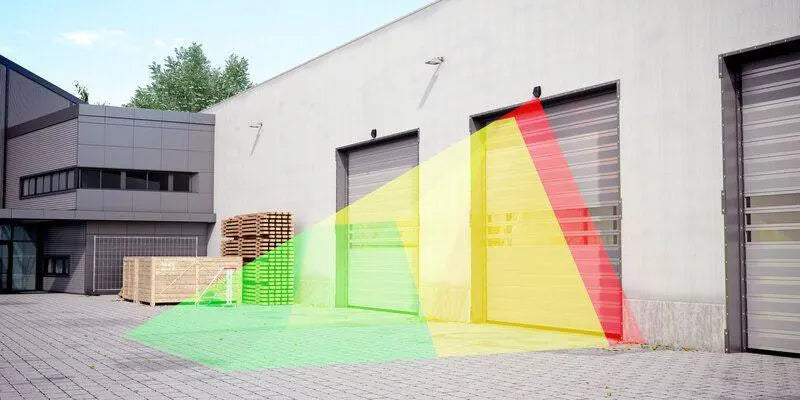

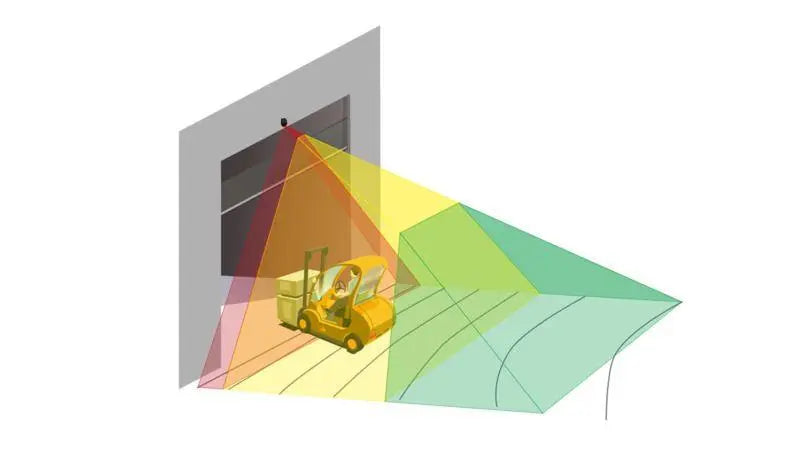

- Contactless opening of gates by entering the detection area
- Contactless protection of gate, persons or objects through presence detection in the anteroom of the gate
- Direction detection prevents incorrect openings and saves energy costs

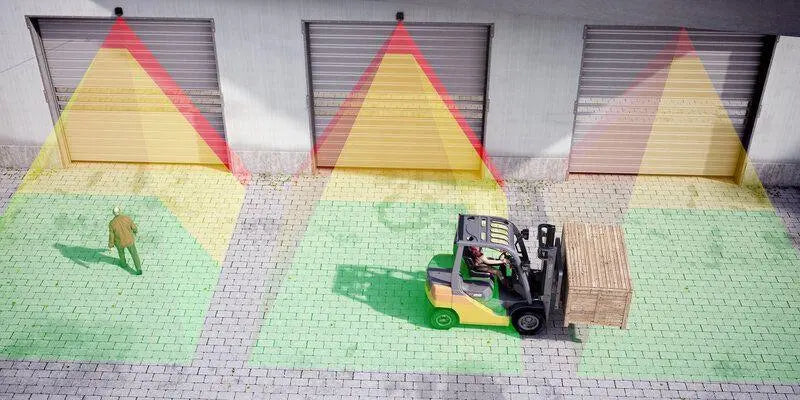

- detection filter to distinguish between people and vehicles
- 3 virtual pull switches programmable to open the gate
- Depending on the size of the object being detected, different opening heights can be controlled to optimize energy costs

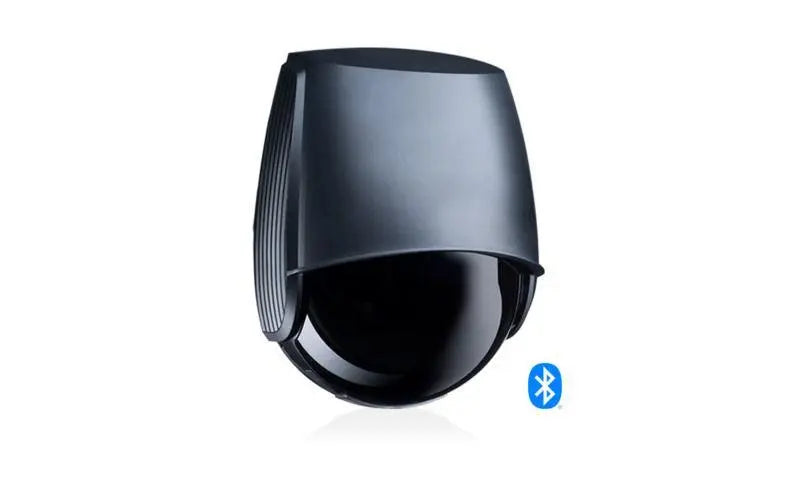

- Programming of functions and diagnostics via an integrated LC display or simply via Bluetooth with the smartphone app
Product descriptive dataconnection type conventionaloutputs
3 potential-free relay contacts (1 CO, 1 NO, 1 NC)
entrances1 test input
color blackprotection class IP65Sensors LaserWavelength [nm] 905application areaTemperature (min./max.) [°C] -30/60performance dataLaser detection field (WxL max.) [m] 10x10Electrical dataOperating voltage [V] 12-24 V-AC 12-30 V-DCOperating voltage type alternating current or direct currentPower consumption [VA/W/kW] 15 Wcontact load (max.)48 VA/30 W
dimensions and weightsDimensions (WxHxD) [mm] 150x200x100
